In respiratory care, the right breathing filter plays an important role in maintaining airway conditions and reducing microbial contamination. HME filters and bacterial filters are both used in respiratory systems, but they have different functions and should not always be used interchangeably.
An HME filter mainly preserves heat and moisture from exhaled air, while a bacterial filter is designed to trap bacteria, viruses, and other particles. Knowing the difference between these devices, as well as their correct positions in a breathing circuit, can help prevent problems caused by incorrect selection or installation.

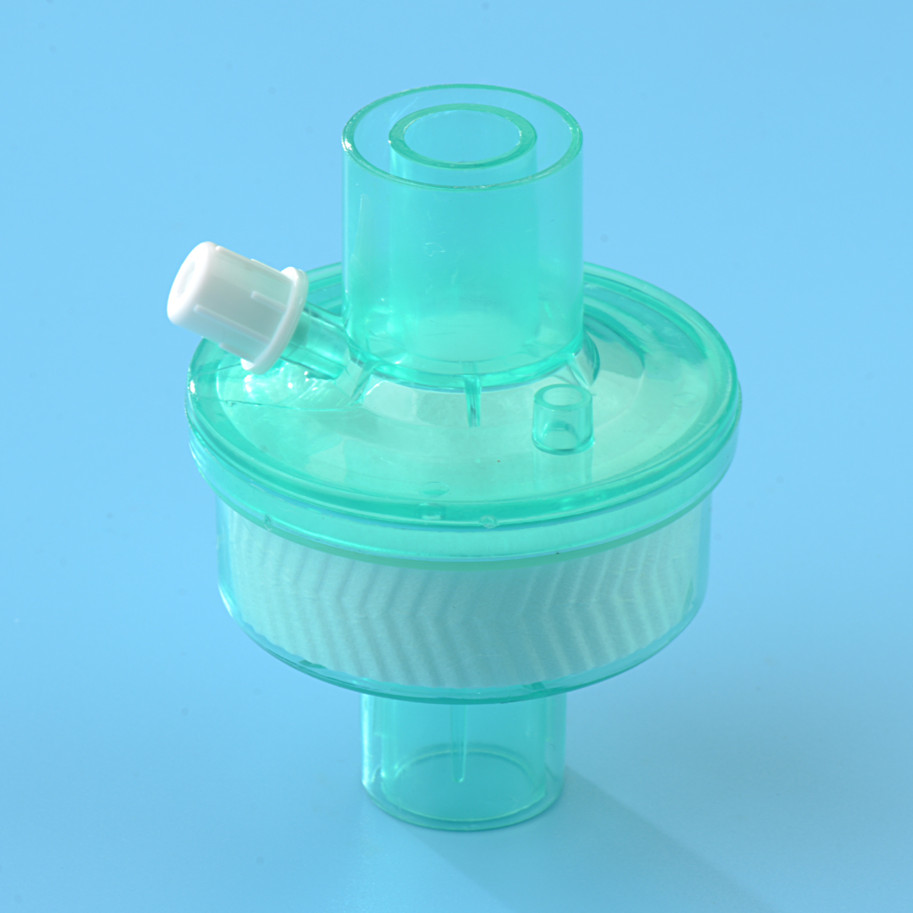

HME Filter
HME filters retain heat and moisture from exhaled breath, then return them to the inhaled air to provide passive humidification.
An HME, or heat and moisture exchanger, works by capturing part of the heat and moisture contained in exhaled gas. During the next inhalation, this heat and moisture are returned to the inspired air.
This passive process helps maintain appropriate humidity in the airway during mechanical ventilation and other respiratory applications.
Unlike an active humidifier, an HME does not normally require an external water source.
Common applications include:
- Mechanical ventilation
- Anesthesia
- Intensive care
- Transport ventilation
- Respiratory therapy
Some HME products also provide filtration. However, filtration performance varies by product, so an HME should not automatically be considered a substitute for a dedicated bacterial filter.
Bacterial Filter
The primary purpose of a bacterial filter is microbial filtration rather than humidification.
Depending on the design, it can be used in different parts of a breathing circuit to help protect the patient, ventilator, anesthesia equipment, or other respiratory components from contamination.
A bacterial filter does not normally provide the same heat and moisture exchange function as an HME.
Its filtration efficiency, airflow resistance, dead space, and recommended position depend on the specific product.
HME Filter vs Bacterial Filter: Which One Is Right for You?
The main difference between an HME filter and a bacterial filter is their primary function.
An HME filter is designed to retain and return heat and moisture, providing passive humidification during ventilation. A bacterial filter, on the other hand, is designed to trap bacteria, viruses, and other particles to help reduce microbial contamination.
Some devices, known as HMEFs, combine heat and moisture exchange with filtration. However, their actual performance depends on the product design and specifications.
| Feature | HME Filter | Bacterial Filter |
|---|---|---|
| Primary function | Heat and moisture exchange | Microbial filtration |
| Humidification | Yes | No, unless specifically designed |
| Heat conservation | Yes | Not the primary function |
| Bacterial/viral filtration | Depends on design | Primary function |
| External water source | Usually not required | Not required |
| Typical application | Ventilation and anesthesia | Respiratory circuit protection |
Which One Should You Choose?
Choose an HME filter when passive humidification and heat conservation are required.
Choose a bacterial filter when the main requirement is microbial protection within the breathing circuit.
An HMEF may be suitable when both functions are required, provided its filtration and humidification performance meet the requirements of the specific application.
The choice should be based on the respiratory system, clinical requirements, product specifications, and manufacturer's instructions.
Correct Location for Installing an HME Filter
An HME filter is generally positioned between the patient's airway and the breathing circuit, close to the patient.
This location allows the device to capture heat and moisture from exhaled gas and return them during the next inhalation.
The exact position may vary depending on the HME design, breathing system, and clinical application.
1. Patient Side
In many applications, the HME is placed close to the patient's airway.
Positioning the device near the patient allows it to exchange heat and moisture directly from the patient's exhaled and inhaled gases.
2. Between the Patient and Y-Piece
In a typical ventilator circuit, an HME may be connected between the patient's airway and the Y-piece.
This is commonly used when the HME is intended to condition inspired gas at the patient end of the circuit.
3. Follow the Manufacturer's Instructions
The HME should always be installed according to the manufacturer's instructions for use.
Before installation, check the recommended position, connector compatibility, device orientation, dead space, and compatibility with the breathing system.
An HME should not be used in an actively humidified circuit unless the product is specifically designed and approved for that configuration.
Correct Location for Installing a Bacterial Filter
The correct position of a bacterial filter depends on its intended purpose and the configuration of the breathing circuit.
It may be positioned on the inspiratory limb, expiratory limb, or close to the patient, depending on the specific product and application.
1. Inspiratory Limb
A bacterial filter may be placed on the inspiratory side to help reduce microorganisms entering the patient's airway through the respiratory system. Depending on the circuit configuration, it may also help protect downstream components from contamination.
2. Expiratory Limb
A filter placed on the expiratory side can help reduce contamination from exhaled gases entering the ventilator and other respiratory equipment. This position may be useful when equipment protection is an important part of the filtration strategy.
3. Patient Connection
Some bacterial filters are designed to be placed close to the patient.
This position can provide filtration at the patient connection, depending on the product design and intended use. The filter should always be installed according to the manufacturer's instructions and the requirements of the specific respiratory system.
Three Risks of Using the Wrong Filter
Using an incorrect device in a respiratory circuit can create significant risks. Three major concerns are microbial contamination, occlusion caused by excess moisture, and occlusion caused by dried secretions.
1. Microbial Contamination
An HME is primarily designed to conserve heat and moisture. If a respiratory system requires microbial filtration, an HME without the required filtration performance may provide inadequate protection.
This can increase the potential for microorganisms to enter or remain within the respiratory circuit and equipment. Therefore, an HME should not automatically be treated as an equivalent replacement for a dedicated bacterial filter.
2. Occlusion Due to Rainout
An HME is designed to retain heat and moisture. When an HME or HMEF is used in a circuit that already provides active humidification, excess moisture may accumulate.
This can result in rainout, where condensed water collects inside the breathing circuit or filter.
Excessive moisture can increase resistance and may contribute to filter occlusion. In turn, this can affect airflow and ventilation performance.
For this reason, an HME or HMEF should not be added to an actively humidified circuit unless the device is specifically intended for that configuration.
3. Occlusion Due to Dried Secretions
A bacterial or microbial filter is primarily designed for filtration and does not necessarily provide the humidification required by the respiratory system.
When adequate humidification is not maintained, respiratory secretions can become thicker and more difficult to clear.
Dried secretions may accumulate within the airway or filter and contribute to obstruction or increased resistance. This is why filtration and humidification requirements should both be considered when configuring a respiratory system.
Key Factors When Choosing a Breathing Filter
Selecting a breathing filter involves more than looking at its filtration efficiency. The following factors should also be considered.
1. Filtration Performance
For bacterial or viral filtration, check the manufacturer's stated filtration performance and make sure it is suitable for the intended application.
2. Airflow Resistance
All filters create some resistance to airflow. Excessive resistance may affect ventilation, so the manufacturer's resistance specifications should be reviewed before use.
3. Dead Space
Dead space is the volume of gas contained within the device that does not directly participate in gas exchange.
For some patients, particularly those requiring precise ventilation management, filter dead space should be considered during device selection.
4. Moisture Output
For an HME or HMEF, moisture exchange performance is an important consideration.
A suitable heat and moisture filter should provide adequate humidification while maintaining acceptable airflow resistance.
5. Connector Compatibility
The filter should be compatible with the connectors used in the existing breathing circuit.
A proper connection helps maintain circuit integrity and reduce the risk of leakage.
6. Intended Position
Check whether the filter is designed for the inspiratory limb, expiratory limb, patient side, or another specific position.
A filter should only be used in positions supported by its product specifications.
7. Compatibility With Humidification
If active humidification is already being used, confirm whether the selected filter is suitable for that setup.
Using an inappropriate HME or HMEF in a wet circuit may increase condensation and the risk of occlusion.
8. Manufacturer's Instructions
Always follow the manufacturer's instructions for use, including installation position, replacement requirements, compatibility, and intended application.
Conclusion
HME filters and bacterial filters serve different purposes in respiratory care. Choosing the right device and installing it in the correct position can help maintain effective ventilation and reduce avoidable risks. Always consider the breathing circuit, product specifications, intended application, and manufacturer's instructions before use.
No. An HME filter mainly provides heat and moisture exchange, while a bacterial filter primarily provides microbial filtration.
Not always. Only use an HME as a substitute when its filtration performance meets the requirements of the specific application.
An HME is generally placed close to the patient, between the airway and breathing circuit, according to the manufacturer's instructions.
A bacterial filter may be placed on the inspiratory limb, expiratory limb, or patient side, depending on its intended use and circuit configuration.
Generally, caution is required. Using an HME in an actively humidified circuit may cause excessive condensation and filter occlusion.
An HME mainly exchanges heat and moisture, while an HMEF combines heat and moisture exchange with filtration.
